51.2V100Ah Lithium-ion battery wall mounted battery

51.2V100Ah Lithium-ion battery wall mounted battery

Get Latest Price

Min. Order:

1 Piece/Pieces

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Other information

Product Attributes

Brand: CTT

Packaging & Delivery

Selling Units

Piece/Pieces

CTT TECHNOLOGY (UK) LIMITED Promotional film



Product Description

The wall-mounted Battery boasts a compact design and straightforward installation, significantly saving space while demonstrating outstanding performance in a diverse array of harsh environments.
CTT provides efficient and reliable customized technology solutions to Energy Storage. With excellent quality and excellent performance, we have won the trust and praise of our customers.Choose CTT and you will enjoy a convenient, efficient and safe power supply experience.
Model :J16S200BL-W
Dimensions :440×206×670 mm
Nominal voltage :51.2V
Batterys capacity :100AH
Efficiency :≥96%
Internal resistance :7mΩ
Battery: Lithium iron phosphate (LiFeP04)
Operating voltage range :40~58.4Vdc
Standard charging current :40A
Maximum charging current :100A
Standard discharge current :40A
Maximum discharge current :100A
Peak discharge current :200A (3S)
Discharge termination voltage :42Vdc
Charging temperature range :0~60℃
Discharge temperature range :-10℃~ 60℃
Recommended storage temperature :25℃
Relative humidity :65±20% HR

WHY CHOOSE US

01

Lean
Manufacturing and Continuous Improvement

We have introduced lean tools such as 5S, Value Stream Mapping (VSM), Standardized Work
(SW), and Amoeba Management to continuously improve operational efficiency.
02

Successful Case
Studies Prove Their Effectiveness

For example, after implementing lean improvements at Cytiva, production efficiency
increased by 247%, cycle time decreased by 43%, and travel distance was reduced by 89%.
03

Advanced Sheet
Metal and CNC Processing Capabilities

Equipped with high-end equipment such as German TRUMPF laser cutting machines, Yamada
CNC punching machines, and five-axis machining centers, we support the manufacture of
complex structural parts.
04

Comprehensive
Surface Treatment Processes

Including spraying, anodizing, electroplating, robotic welding, and other surface
treatment options.

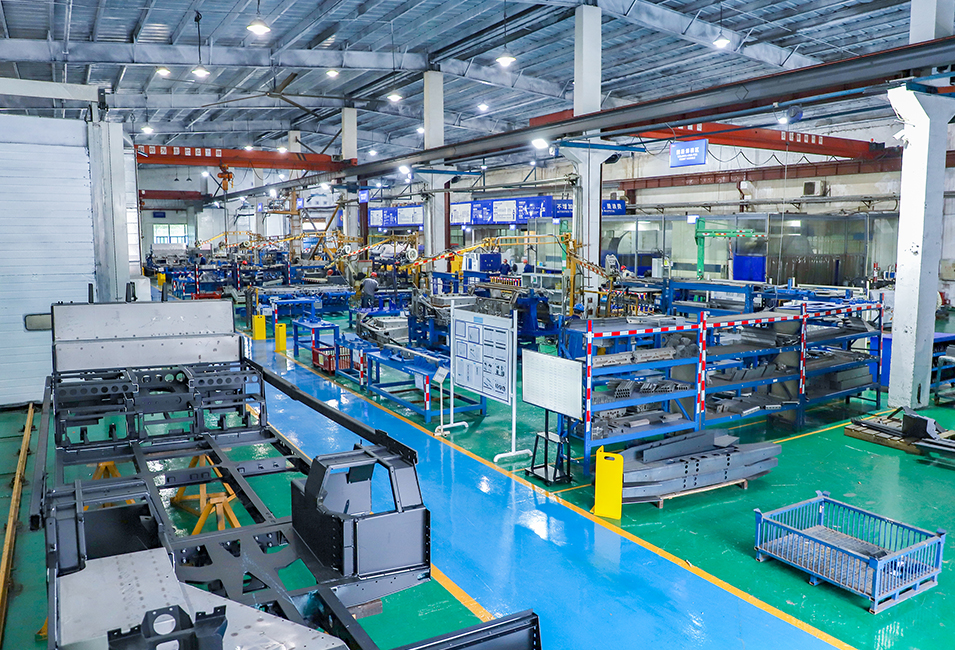

Automobile Chassis Processing

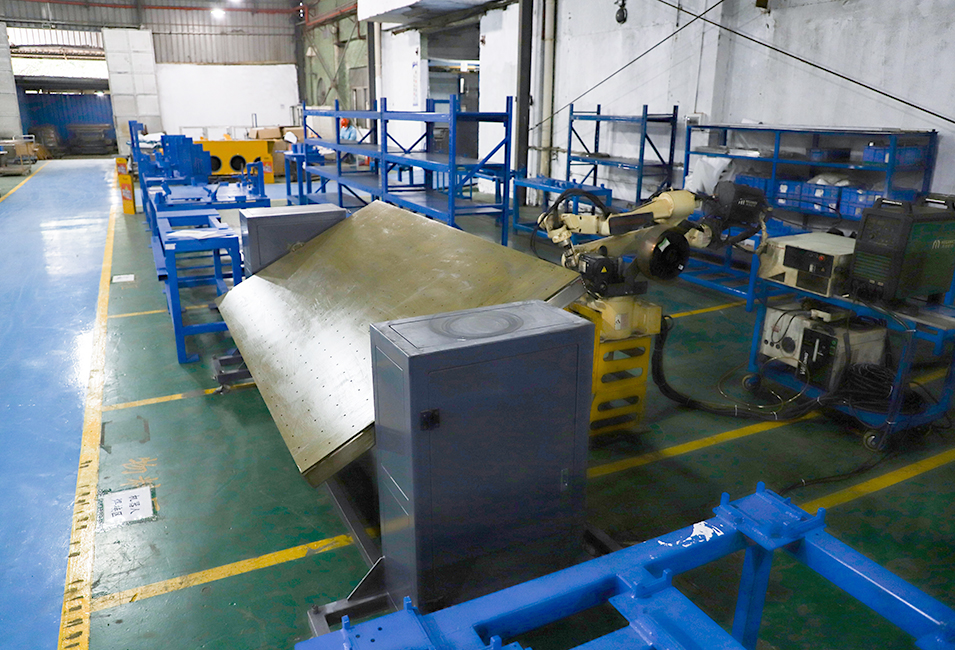

Sheet Metal Spraying

FAQ

Important things you should know

How do sheet metal processing companies manage production?

Use production planning and scheduling systems to reasonably arrange the order
production sequence and processing time of each process. Carry out inventory
management to control the inventory levels of raw materials and finished products.
Implement a quality control system to monitor the entire process from raw material
inspection to finished product inspection. At the same time, pay attention to
equipment maintenance management to ensure the normal operation of equipment and
improve production efficiency.

What is the development trend of the sheet metal processing
industry?

Towards high precision, high efficiency, intelligence, and green environmental
protection. Continuously improve processing accuracy and speed, reduce manual
intervention, and realize automated production. Use environmentally friendly
materials and processes to reduce the impact on the environment, and at the same
time strengthen integration and innovation with other industries such as automobiles
and electronics.

What are the characteristics of intelligent sheet metal processing
equipment?

It has automatic loading and unloading functions, and can automatically adjust
processing parameters such as cutting speed, power, bending angle, etc. according to
preset programs. It can monitor the operating status of the equipment in real time,
conduct fault warning and diagnosis, improve the reliability and production
efficiency of the equipment, and reduce the scrap rate.

What are the applications of sheet metal processing in the
automotive industry?

Many of the car body shells, engine hoods, doors, chassis parts, etc. are sheet
metal parts. Sheet metal processing can meet the requirements of automotive parts
for strength, precision and appearance, while adapting to the needs of large-scale
production of automobiles, and various complex shapes of automotive parts are
manufactured through stamping, welding and other processes.

What is the possibility of combining sheet metal with 3D printing
technology?

In some cases, complex 3D-printed parts can be assembled with sheet metal parts. Or
use 3D printing to make molds or fixtures for sheet metal processing, improve the
flexibility and efficiency of mold manufacturing, and reduce mold costs, especially
for small batch and customized sheet metal processing production.

What are the applications of combining sheet metal with injection
molding?

In some product shell designs, sheet metal is used as the skeleton structure, and
injection molding parts are used as appearance decoration or functional parts. For
example, in the shell of electronic equipment, sheet metal provides strength and
support, and injection molding parts can realize the integration of diversified
appearance shapes and functional parts such as buttons.
