Bringing an innovative product from concept to production requires more than a great design—it demands manufacturability. Even the most advanced product can become expensive, difficult to assemble, or impossible to manufacture efficiently if Design for Manufacturing (DFM) principles are ignored.
For companies producing custom metal components, DFM bridges the gap between engineering creativity and production efficiency. Whether manufacturing precision brackets, electronic enclosures, medical device components, aerospace assemblies, or industrial equipment, DFM minimizes manufacturing complexity while maximizing product performance.
Modern manufacturers combine sheet metal fabrication, laser cutting, CNC machining, precision welding, and assembly technologies to achieve high-quality production. By considering manufacturing constraints during product development, engineers can significantly reduce production costs, improve consistency, and shorten product development cycles.
This guide explores the essential principles of Design for Manufacturing, practical guidelines, and proven strategies for reducing manufacturing costs.
Design for Manufacturing (DFM) is an engineering methodology that optimizes product designs to simplify manufacturing processes while maintaining functionality, reliability, and quality.
Instead of designing a product first and solving manufacturing problems later, DFM integrates manufacturing knowledge into the design phase.
The objectives include:
When applied early, DFM can eliminate costly redesigns after prototype validation.
Studies consistently show that over 70% of manufacturing costs are determined during the product design stage. Once tooling, fixtures, and production processes are established, design modifications become increasingly expensive.
Implementing DFM offers several advantages:
Simplified geometries reduce machining time, tooling requirements, and material waste.
Manufacturing-friendly designs reduce setup time and shorten production cycles.
Consistent manufacturing processes produce parts with tighter dimensional control.
Fewer manufacturing challenges result in quicker production and faster product delivery.
Products designed using DFM principles transition smoothly from prototypes to mass production.
Complex part geometries often require additional machining operations, specialized tooling, multiple setups, and more extensive inspections, all of which increase manufacturing time and production costs. One of the fundamental principles of Design for Manufacturing (DFM) is to simplify part designs wherever possible without compromising functionality. Engineers should eliminate unnecessary features, avoid excessive cosmetic complexity, integrate multiple design elements into simpler geometries, and standardize dimensions whenever practical. A well-optimized design not only reduces manufacturing complexity but also improves production efficiency, enhances dimensional consistency, and lowers overall manufacturing costs. In most cases, simpler parts are faster to produce, easier to inspect, and more economical for both prototype and high-volume production.
Each manufacturing process has unique capabilities.
For example:
Ideal for:
Advantages include:
Best suited for:
Choosing the correct process early avoids unnecessary manufacturing costs.

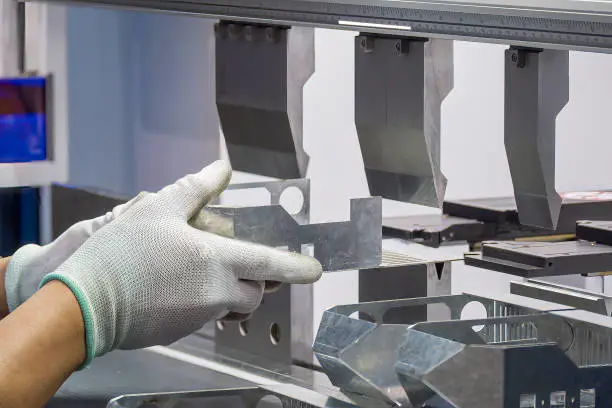

Designing parts specifically for sheet metal fabrication significantly improves manufacturability.
Important recommendations include:
Using a consistent sheet thickness:
Inside bend radius should generally match the material thickness.
Benefits include:
Adding proper bend relief prevents:
This is particularly important for stainless steel and aluminum components.
Whenever possible:

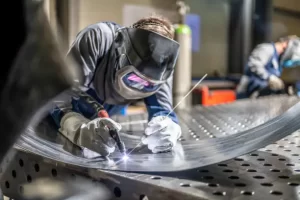

Fewer welds mean:
Keep holes sufficiently away from bends.
Poor hole placement can result in:
Laser cutting is widely used in precision manufacturing due to its excellent repeatability.
However, designers should understand realistic laser cutting tolerances.
Typical tolerances vary depending on:
Design recommendations include:
Overly restrictive tolerances increase inspection time, machining cost, and production difficulty.
Instead, engineers should specify tighter tolerances only for functional features.

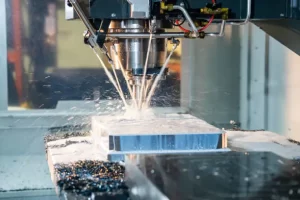

CNC machining offers exceptional precision, but poor design decisions can dramatically increase manufacturing costs.
Deep and narrow cavities are more difficult to machine because they require longer cutting tools, slower machining speeds, and multiple machining passes. Whenever possible, designers should minimize these features or adjust their dimensions to improve tool accessibility, reduce machining time, and lower production costs while maintaining the required part performance.
Sharp internal corners are difficult and costly to machine because standard end mills naturally produce rounded corners. Incorporating appropriate internal radii into the design improves manufacturability, reduces machining time, and allows the use of standard cutting tools, helping lower overall production costs.
Tight tolerances should be specified only where they are functionally necessary, as they increase machining complexity, inspection requirements, and production costs. Applying standard tolerances to non-critical features helps improve manufacturing efficiency while maintaining the required product performance and quality.
Designing parts that can be machined in fewer setups helps improve dimensional accuracy, reduce machining time, and lower production costs. Simplifying part orientation and minimizing repositioning during machining also increases production efficiency and ensures more consistent quality across both prototype and production runs.
Material choice greatly affects manufacturability.
Factors include:
For example:
Steel provides excellent strength and affordability.
Aluminum offers lightweight performance and superior machinability.
Stainless steel delivers corrosion resistance but requires longer machining times.
Selecting the right material balances performance and manufacturing efficiency.
Reducing the number of individual components is one of the most effective Design for Manufacturing (DFM) strategies for lowering production costs and improving overall product reliability. By consolidating multiple parts into a single, well-designed component, manufacturers can significantly reduce assembly operations, minimize the use of fasteners, simplify inventory management, and decrease the likelihood of assembly errors. Fewer components also translate into lower procurement and logistics costs while improving product consistency and long-term reliability. In sheet metal fabrication, modern forming and bending technologies often allow several welded or assembled parts to be replaced with a single bent component, reducing both manufacturing complexity and labor costs. Designing with part consolidation in mind not only streamlines production but also creates a more efficient and scalable manufacturing process from prototyping through high-volume production.
Standardizing components is a simple yet highly effective Design for Manufacturing (DFM) strategy that helps reduce production costs, simplify procurement, and improve manufacturing efficiency. Whenever possible, designers should use readily available standard hardware, such as screws, threaded fasteners, bearings, and other off-the-shelf components, instead of custom-made parts. Standard components are typically more cost-effective, easier to source, and available with shorter lead times, helping manufacturers avoid unnecessary delays and inventory challenges. In addition, standardization reduces the variety of parts that must be stocked and managed, simplifies assembly processes, and improves maintenance and replacement throughout the product's lifecycle. By incorporating standard components early in the design phase, companies can achieve more consistent production, lower supply chain risks, and better scalability for both low-volume prototypes and high-volume manufacturing.
Design for Assembly (DFA) is a complementary methodology to Design for Manufacturing (DFM) that focuses on simplifying the assembly process while maintaining product performance and reliability. An effective DFA approach reduces the number of assembly steps, minimizes the use of fasteners, and makes components easier to align and install. Designers should incorporate features such as self-locating geometries, symmetrical parts, accessible fastening points, and error-proof (poka-yoke) designs to prevent incorrect assembly and improve production consistency. Simplifying assembly not only reduces labor costs and assembly time but also decreases the risk of human error, leading to higher product quality and greater manufacturing efficiency. When DFM and DFA are applied together from the early stages of product development, manufacturers can streamline production, accelerate time-to-market, and achieve significant cost savings throughout the entire product lifecycle.
Developing prototypes early and validating designs throughout the product development process is a critical aspect of Design for Manufacturing (DFM). Rapid prototyping allows engineers to evaluate manufacturability, dimensional accuracy, structural integrity, and assembly performance before committing to full-scale production. By identifying design flaws and manufacturing challenges at an early stage, companies can make cost-effective improvements and avoid expensive engineering changes during mass production. Prototype testing also provides valuable insights into material selection, production processes, and functional performance, ensuring that the final design is optimized for both quality and manufacturability. Many manufacturers combine rapid prototyping with pilot production to verify process stability and production readiness, enabling a smoother transition from prototype development to low-volume and high-volume manufacturing while reducing overall project risks and time-to-market.
Many products become unnecessarily expensive due to avoidable design decisions.
Common mistakes include:
Reviewing designs with manufacturing engineers early helps eliminate these issues.
Successful DFM requires close collaboration between designers and manufacturers.
An experienced manufacturing partner provides:
This collaborative approach reduces development risks while improving production efficiency.
Design for Manufacturing is far more than an engineering best practice—it is a strategic approach that directly impacts product quality, manufacturing efficiency, and profitability. By considering manufacturing requirements from the earliest stages of product development, engineers can simplify designs, optimize material selection, and eliminate unnecessary production costs before they occur.
Whether your project involves sheet metal fabrication, precision laser cutting, or advanced CNC machining, applying DFM principles leads to faster production, higher-quality components, and smoother transitions from prototype to full-scale manufacturing. Partnering with an experienced manufacturer that offers engineering support throughout the design process ensures your products are not only functional but also optimized for efficient, scalable, and cost-effective production.
